EC11

uav platform

ec11 long endurance
multi-functional

features about ec11

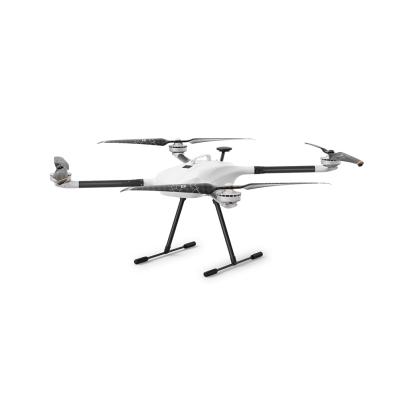

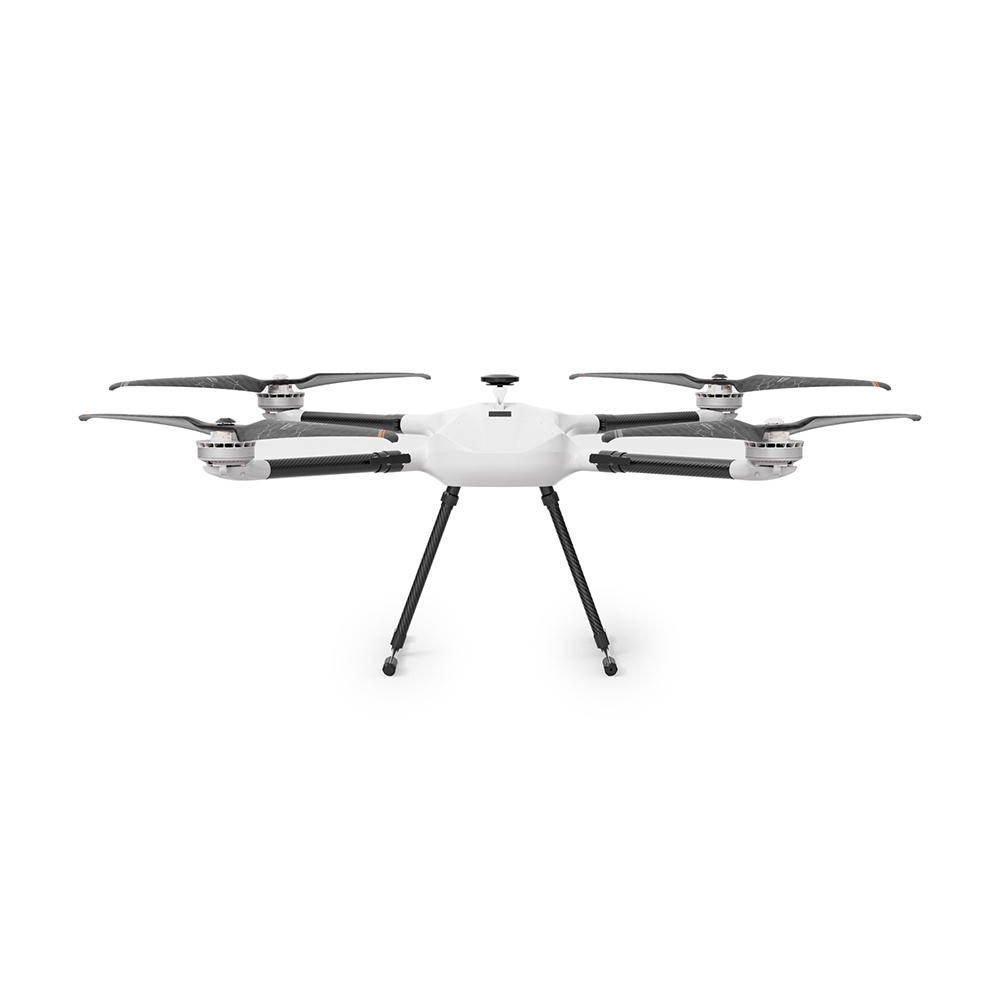

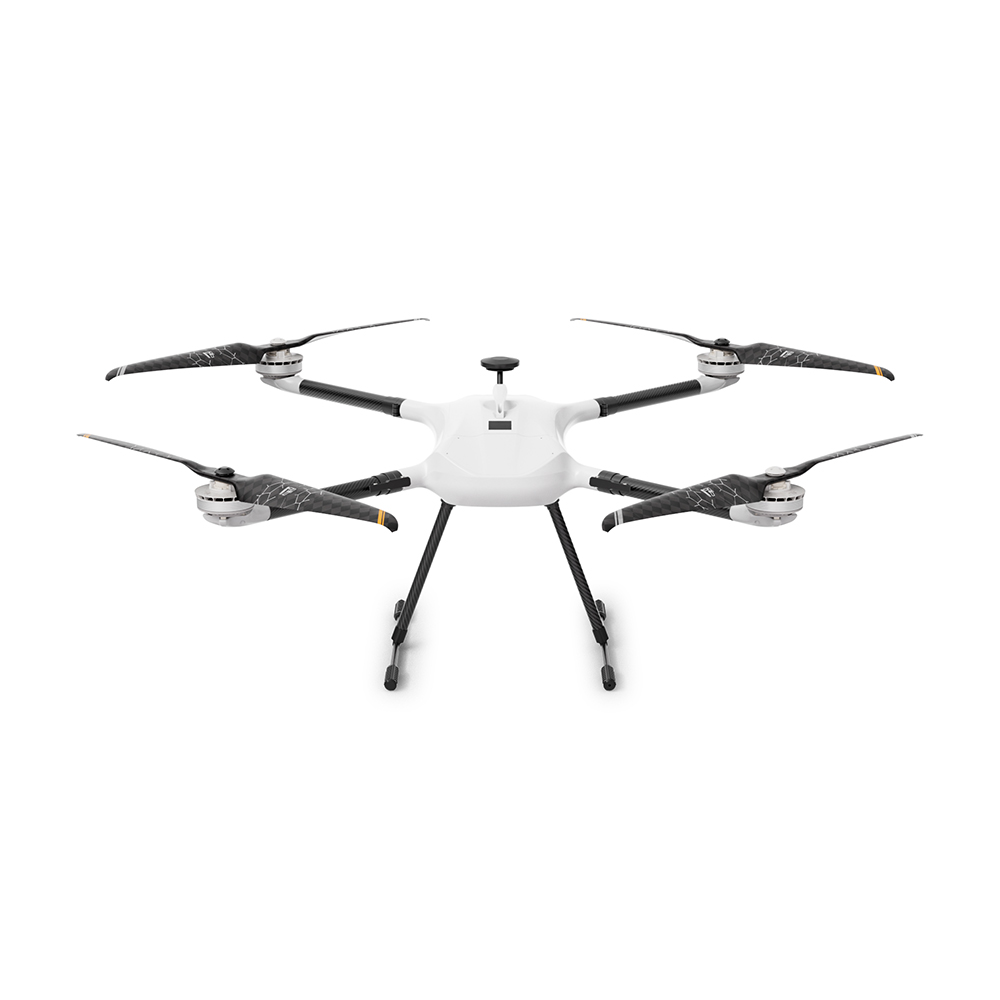

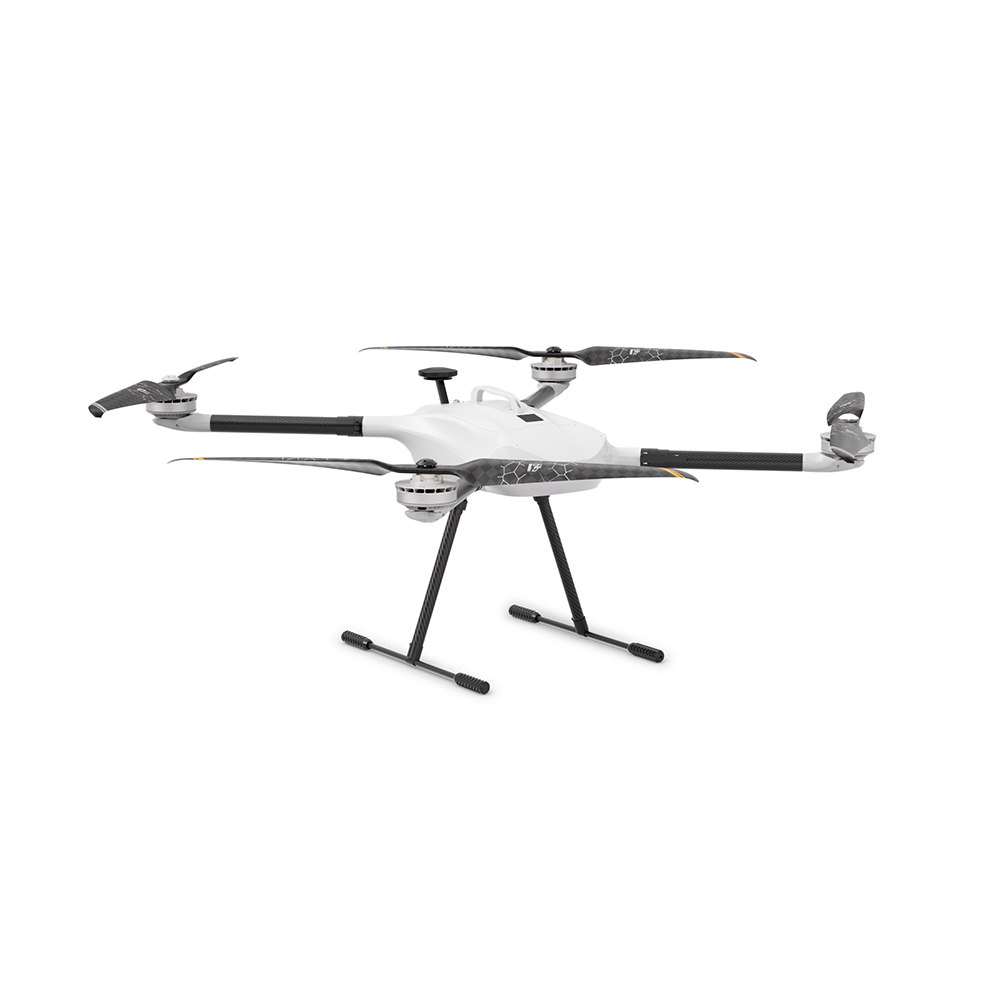

EC11 Product Introduction

Long Flight Time

Long Service Life

Low Noise

Carbon Fiber Material

The flight time is 120min with 2kg load, 77min with 3kg load, 66min with 4kg load and 60min with 5kg load.

It is durable enough to withstand 5,000 sorties and easily cope with high-frequency operations and mobile deployment.

Approximately 50dB/5m silent and unobstructed, allowing you to fly freely in cities, late at night and wildlife reserves with no more restricted areas.

Adopting the integrated molding technology, the drone shell features light weight and high strength, weighing only 1kg.

can smart battery

T-DRONES 12S 36000mAh

Powerful Propulsion System

The EC11 is equipped with the reliable and safe IPET I7 integrated power system. The power system features high efficiency, high reliability, low noise, and it also possesses a real-time monitoring function for health management.

Safe Electrical System

The flight control carrier board adopts a dual-redundant power supply design for safety, and the multi-channel power module provides it with stable power. The carrier board reserves an interface for the flight control module, allowing immediate use upon module insertion.

Folding Arm Design

Optimized folding arm solution with enhanced deployment reliability.

Multi-mount Compatible Platform

The EC11 adopts a mounting split-type quick-release connector, which is compatible with most payload devices. It is equipped with an internal expansion power supply module to support customers' customized demands.
