VA32 ELECTRONIC
CONTROL UNIT BOARD
Connect the VTOL VA32 avionics system to
ensure more stable and convenient flight

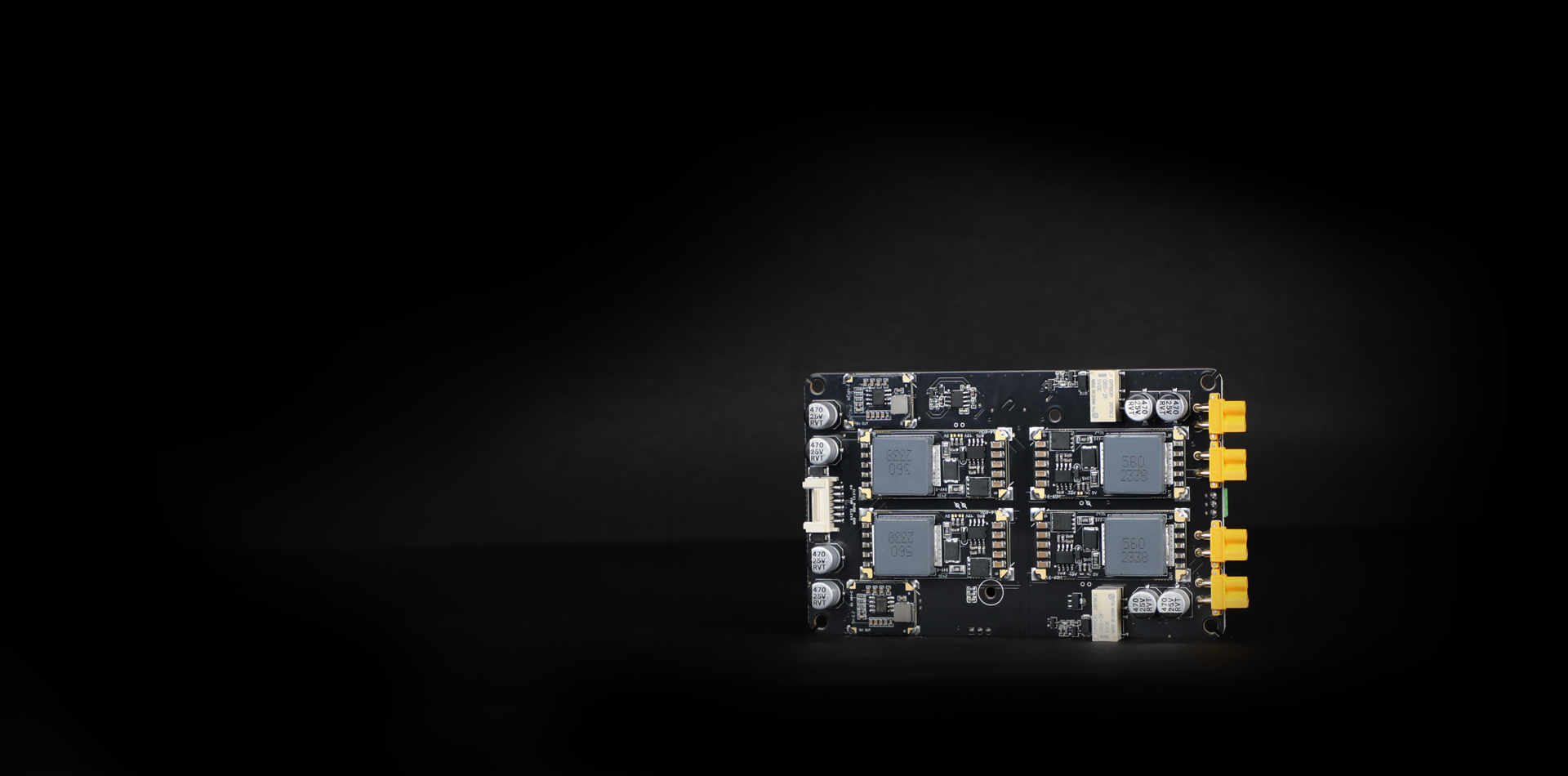

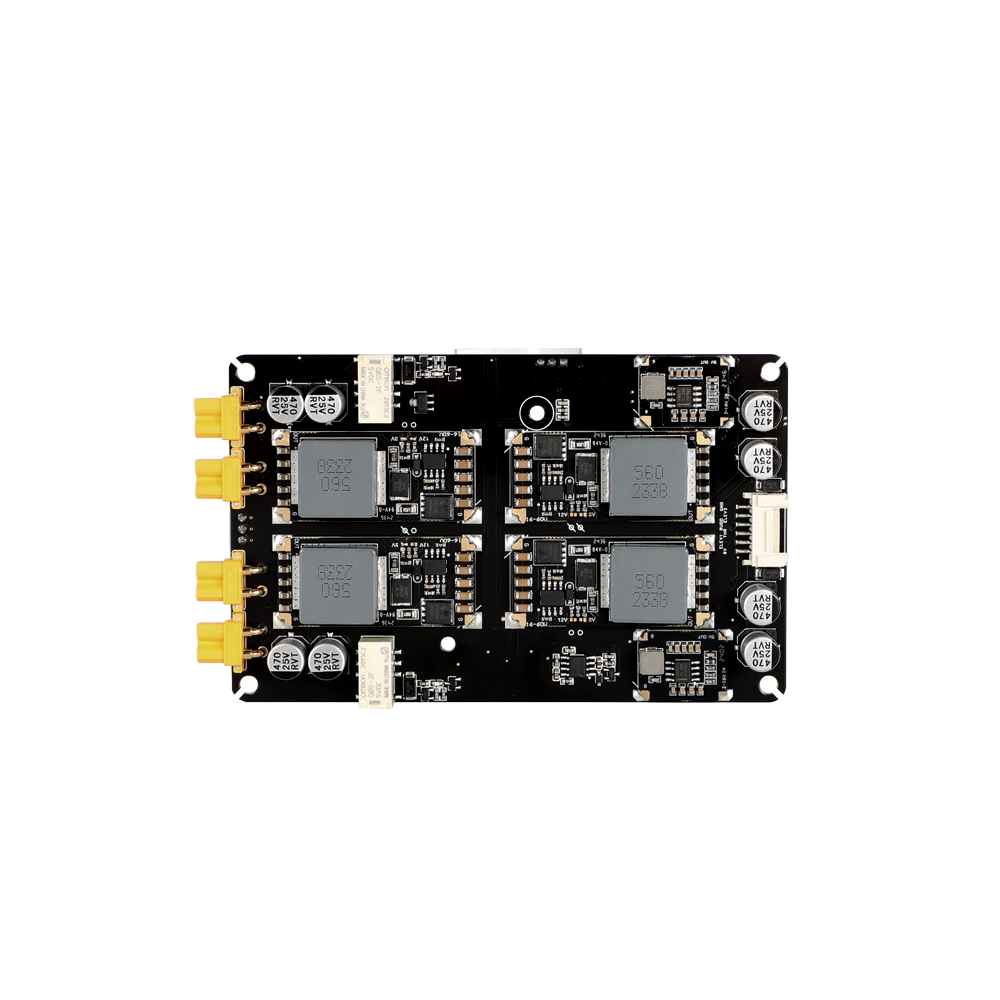

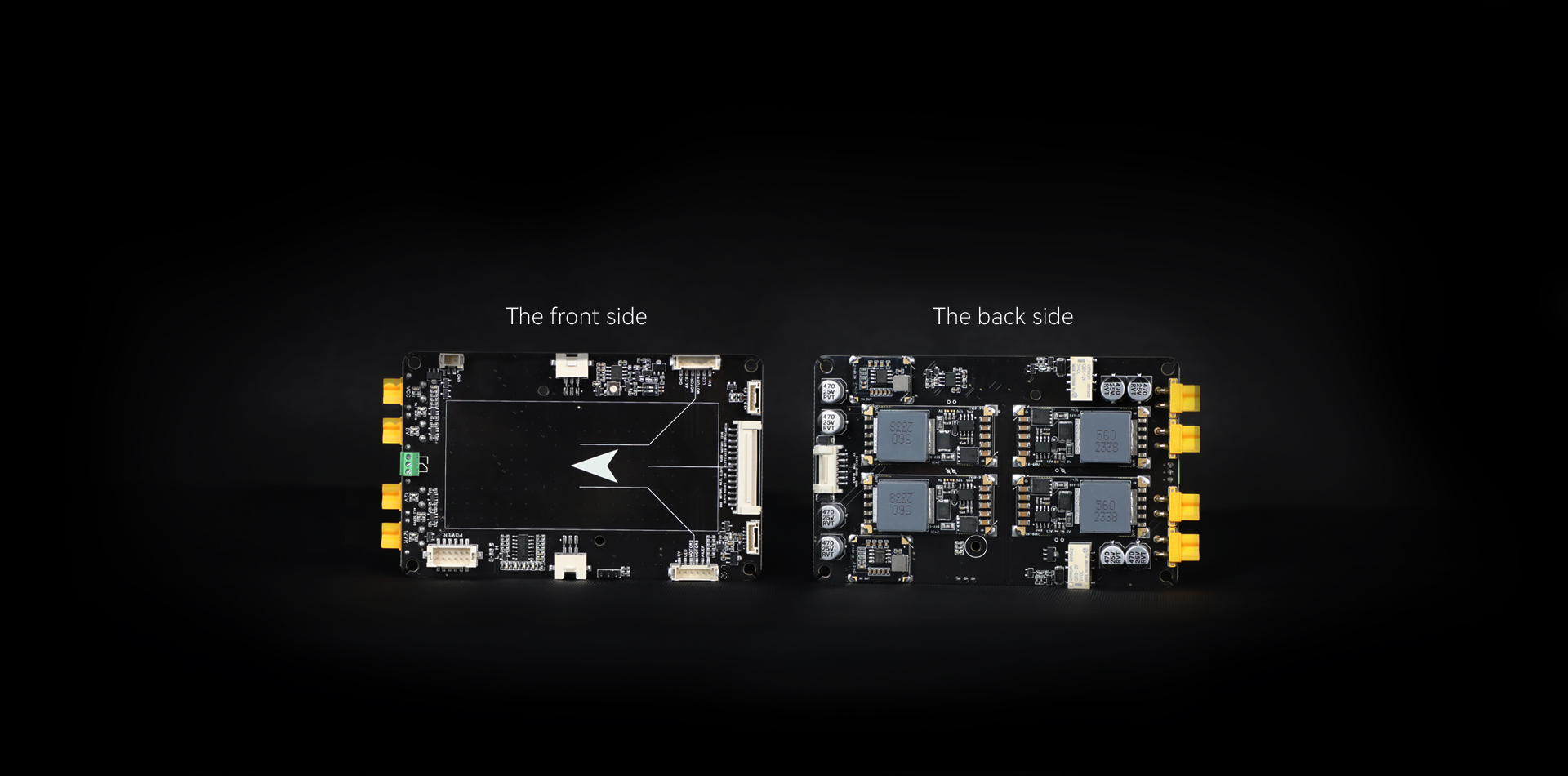

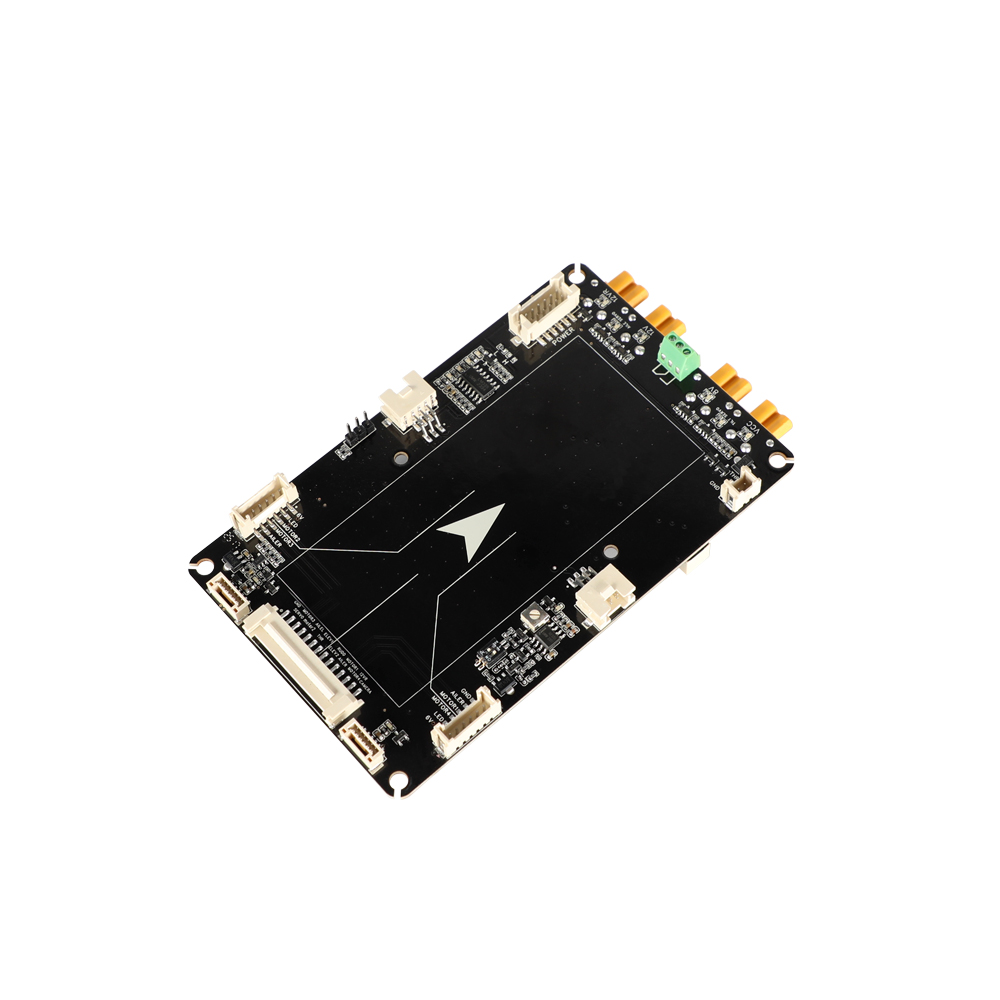

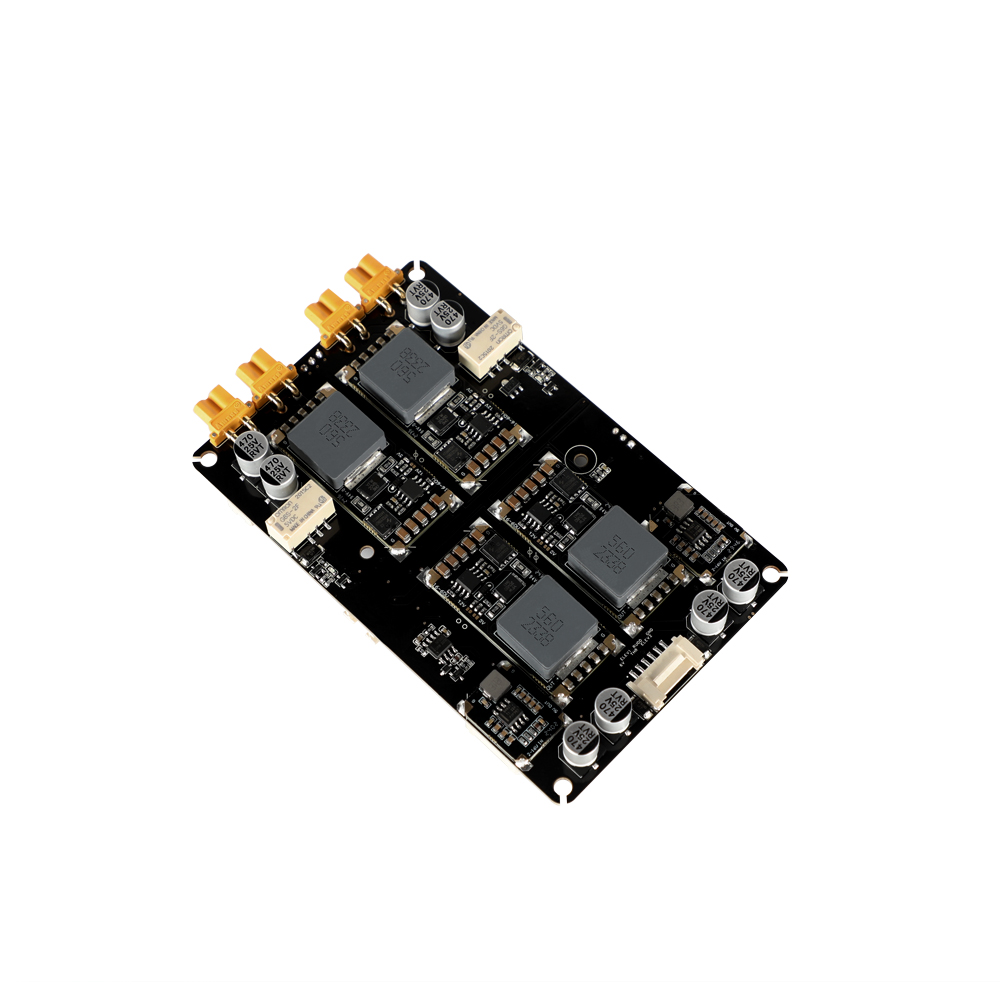

APPEARANCE DISPLAY

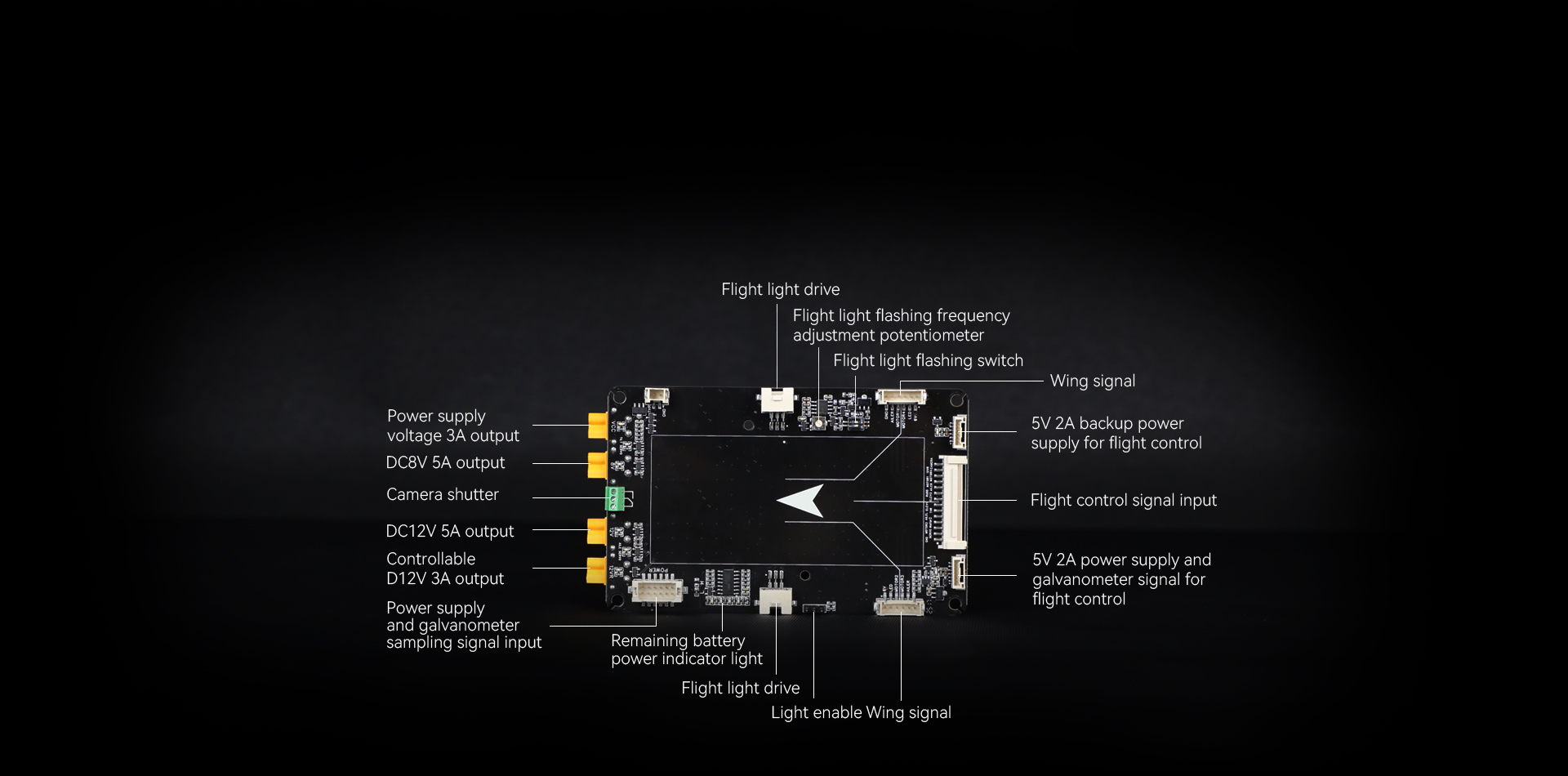

INTERFACE DIAGRAM
SPECIFICATIONS
Model: VA32-ECU
Input Voltage: 24~48V (6~12S)
Size: 70*125*13mm
Output Voltage: 5V/12V/8V
Weight: ≈145g
Matching Model: VTOL VA32
Function Integration: Voltage reduction module, steering gear drive flight control signal distribution line,
flight light drive and flight light control, analog galvanometer interface, shutter interface, battery level
indication, dual power supply for flight control
