VA17 ELECTRONIC
CONTROL UNIT BOARD
Connect the VTOL VA17 avionics system to ensure
more stable and convenient flight

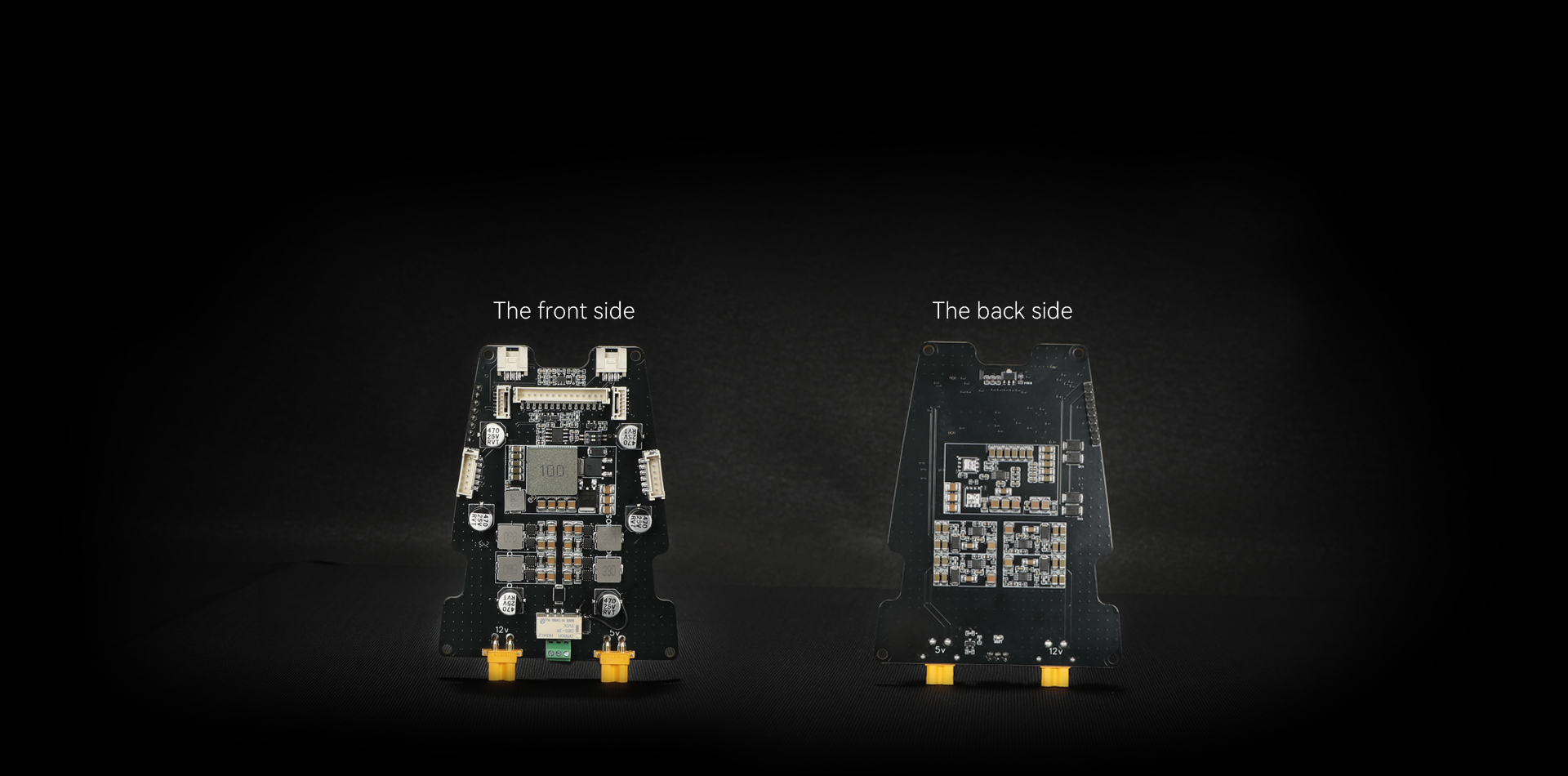

APPEARANCE DISPLAY

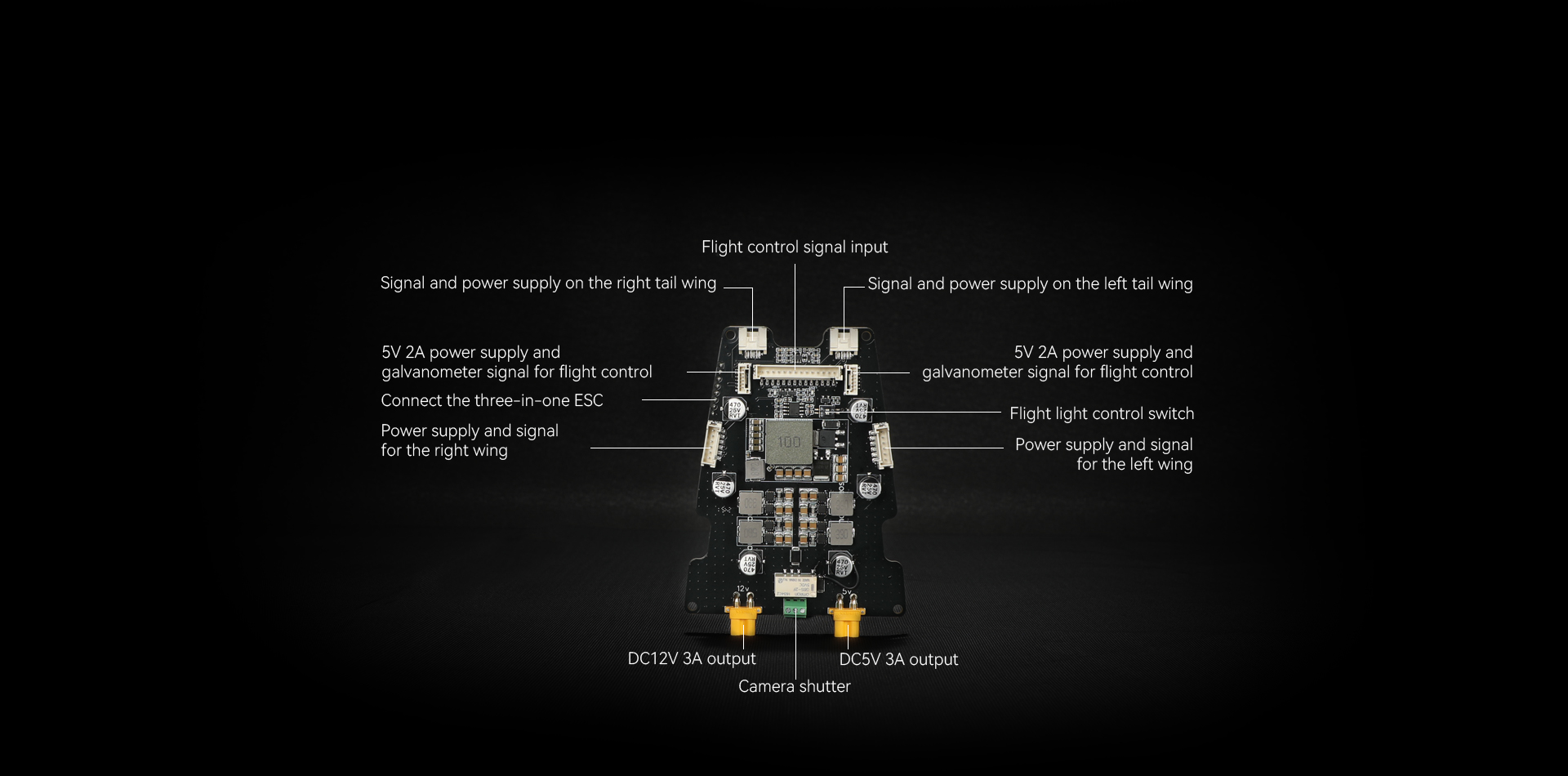

INTERFACE DIAGRAM
SPECIFICATIONS
Model: VA17-ECU
Input Voltage: 24~48V (6~12S)
Size: 81*105*13mm
Output Voltage: 5V/12V/8V
Weight: ≈75g
Matching Model: VA17
Function Integration: Voltage reduction module, servo drive, flight control signal
