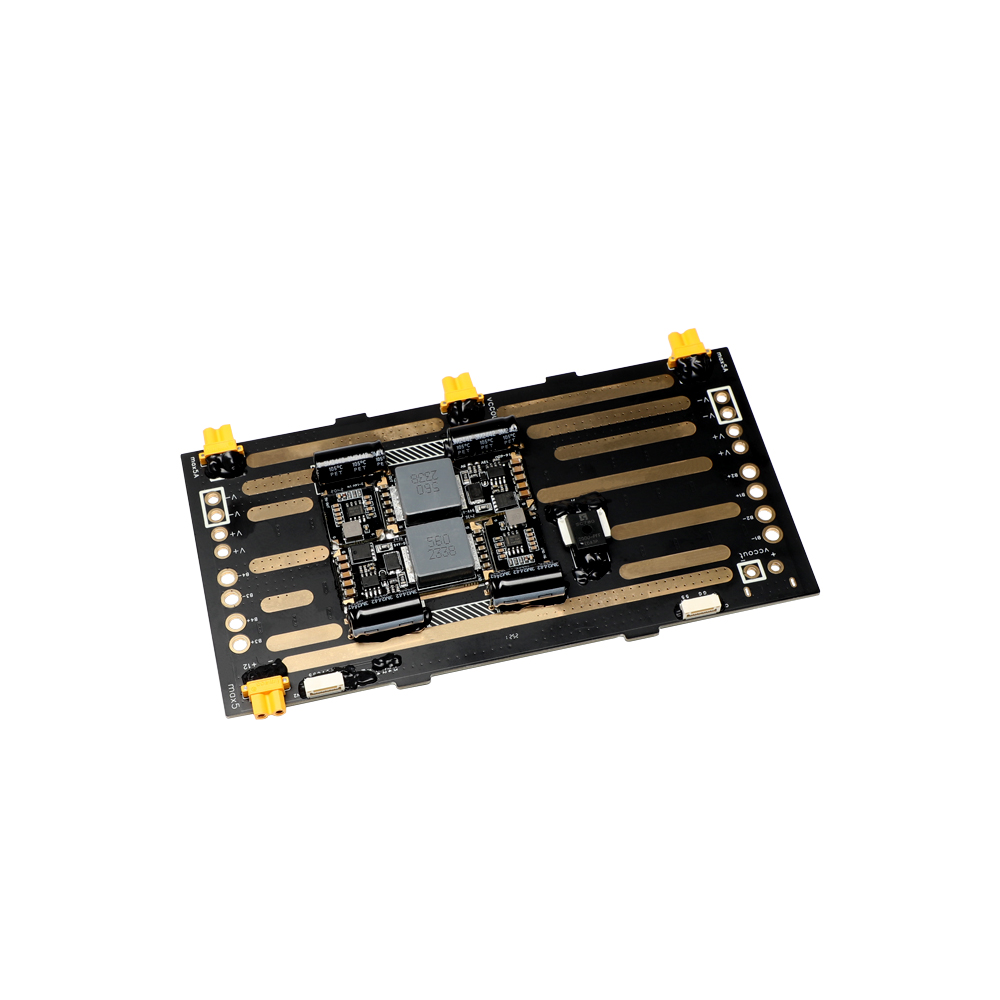

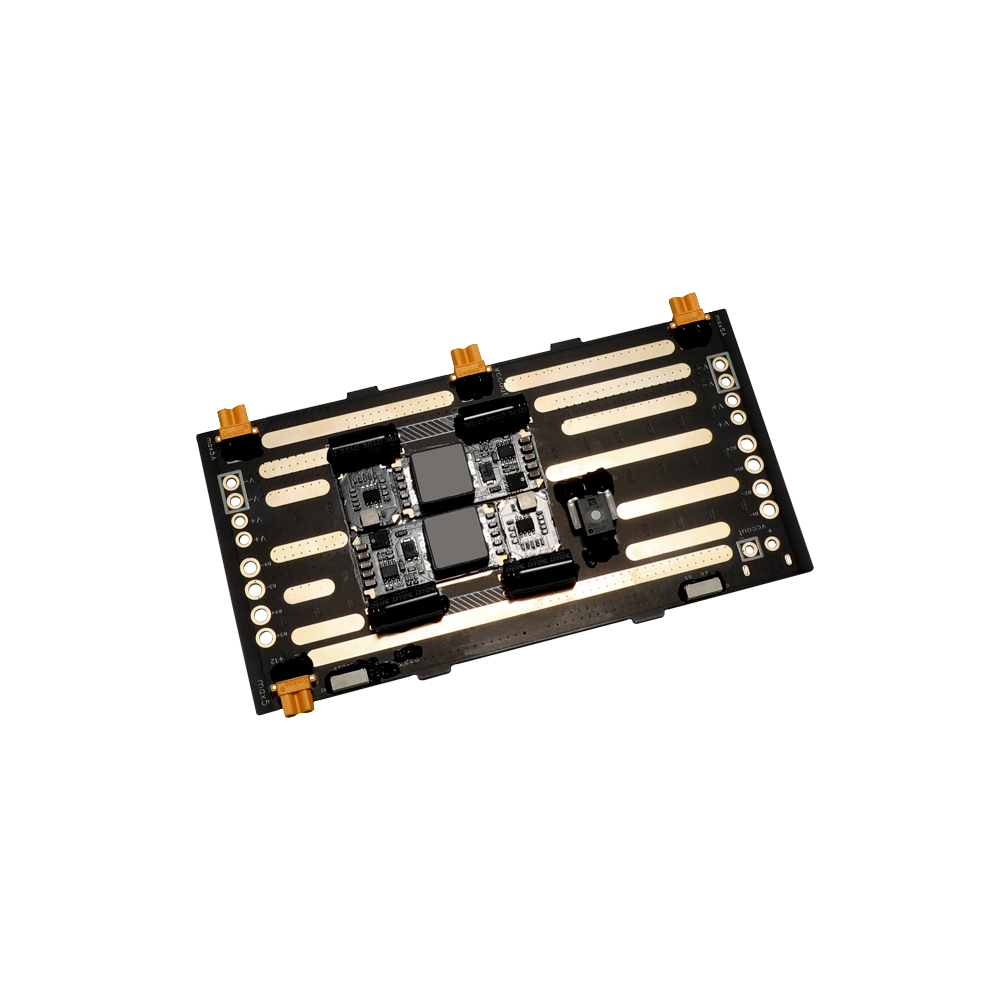

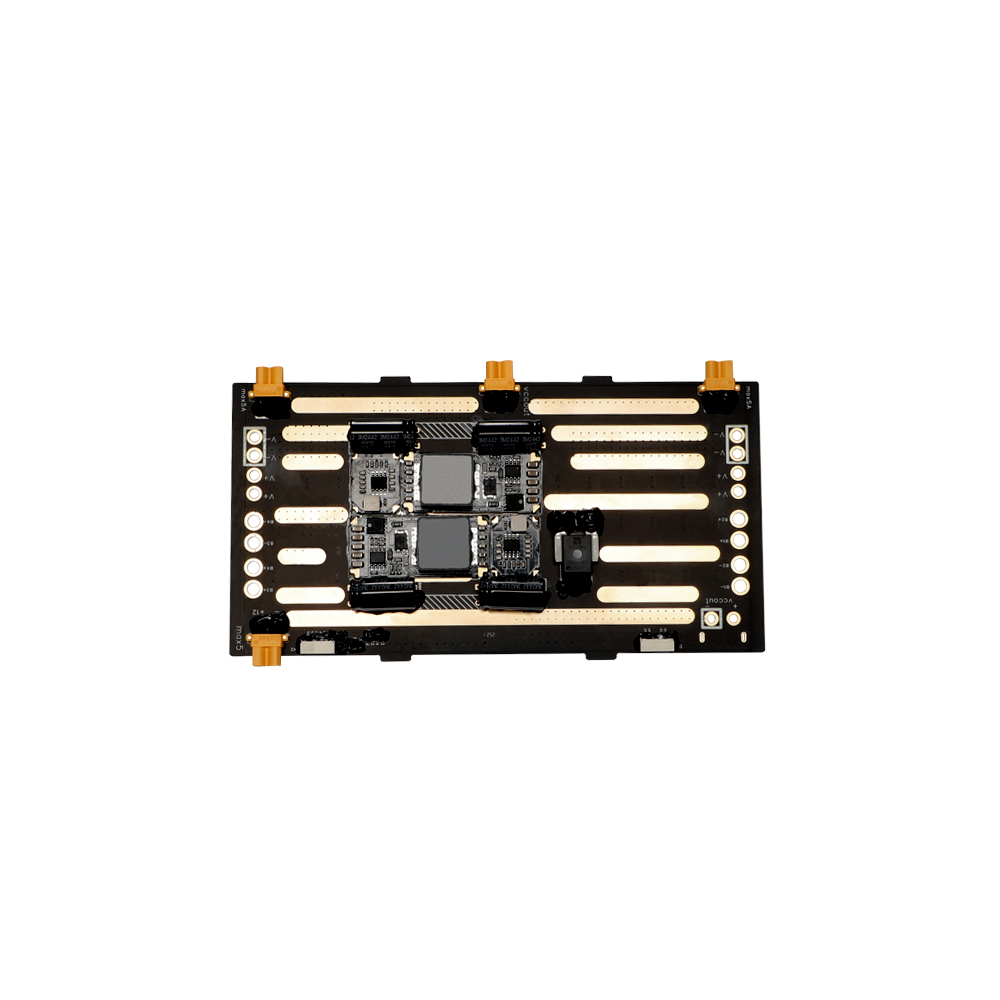

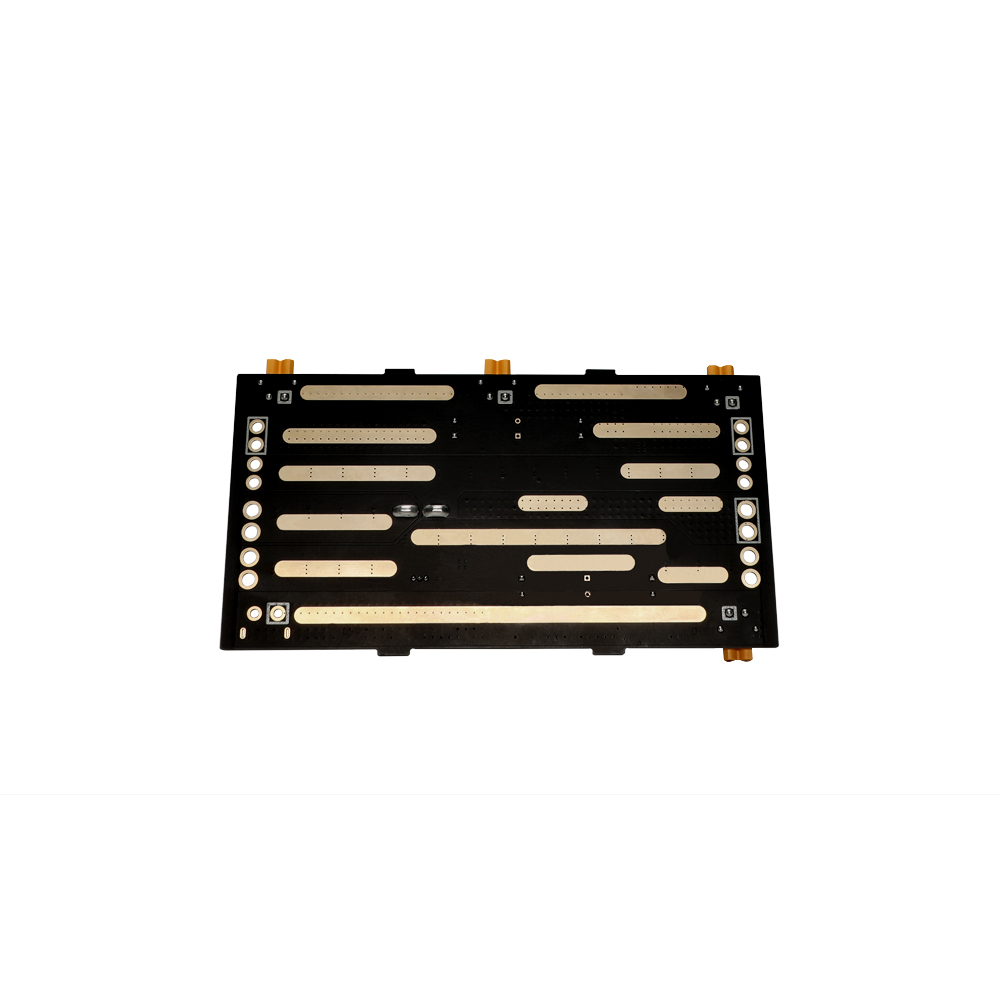

M1200 POWER DISTRIBUTION BOARD
The on-board high-precision analog galvanometer provides
dual flight control power supplies, ensuring stable and safe
flight for the M1200

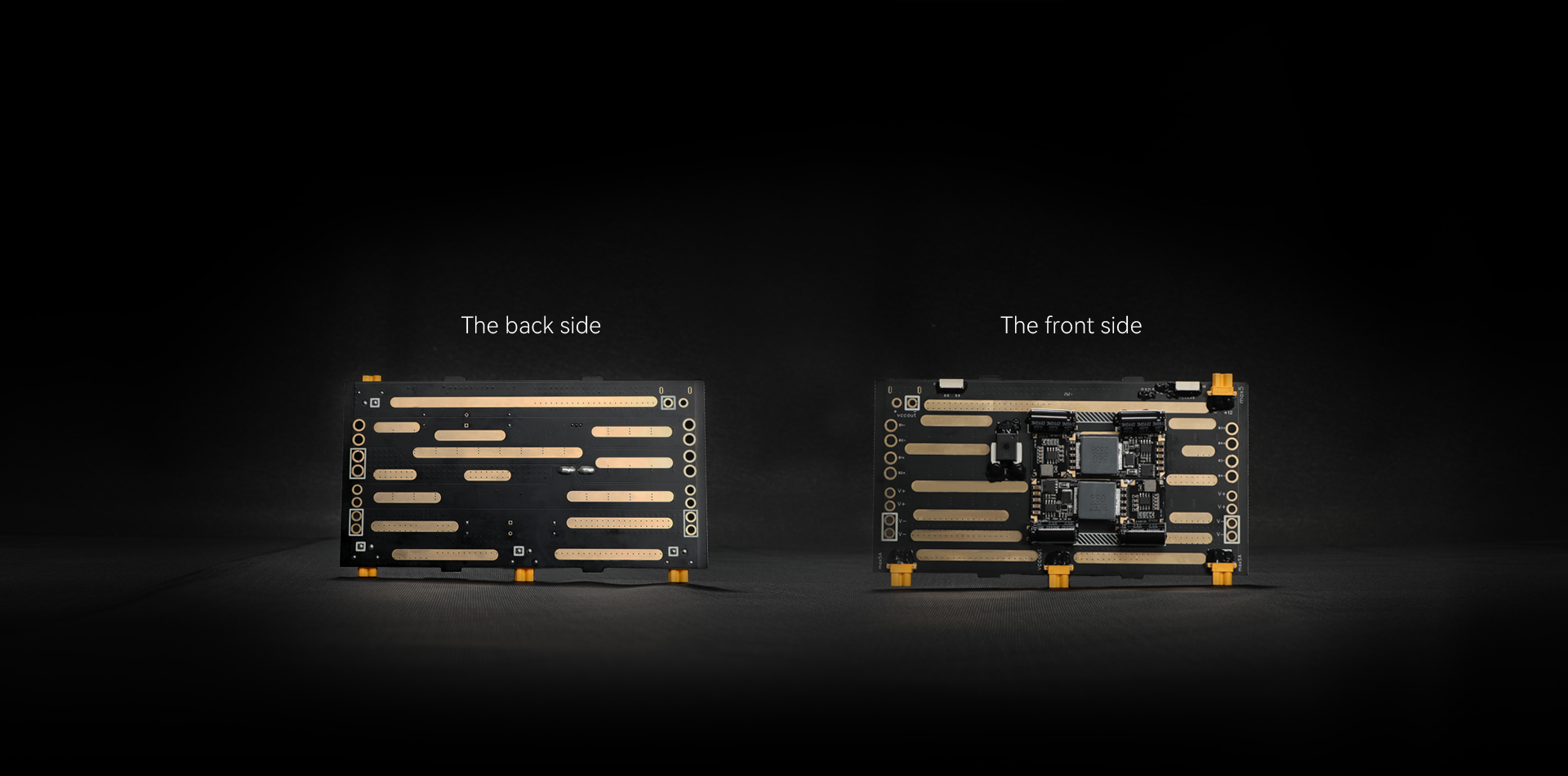

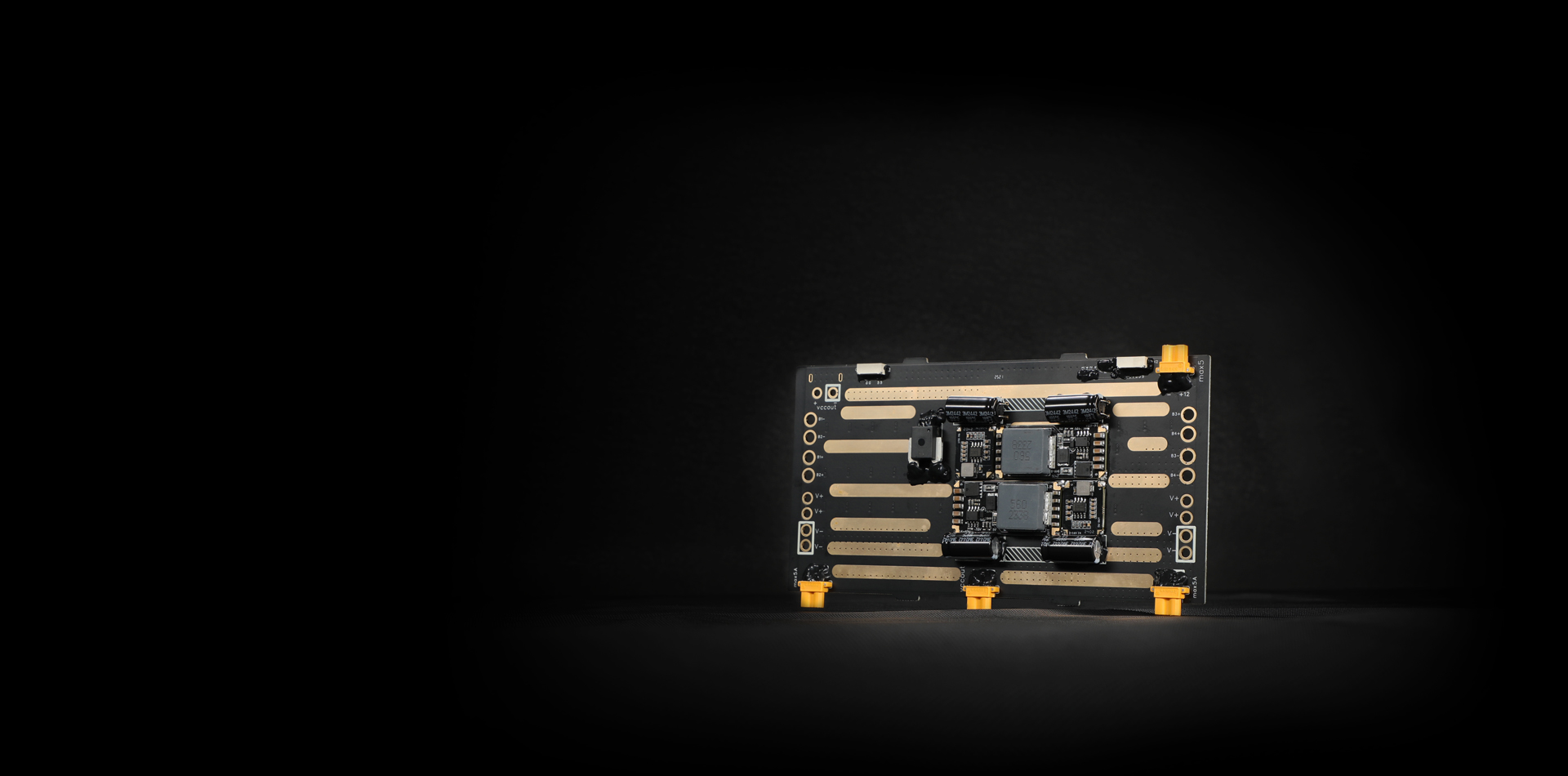

APPEARANCE DISPLAY

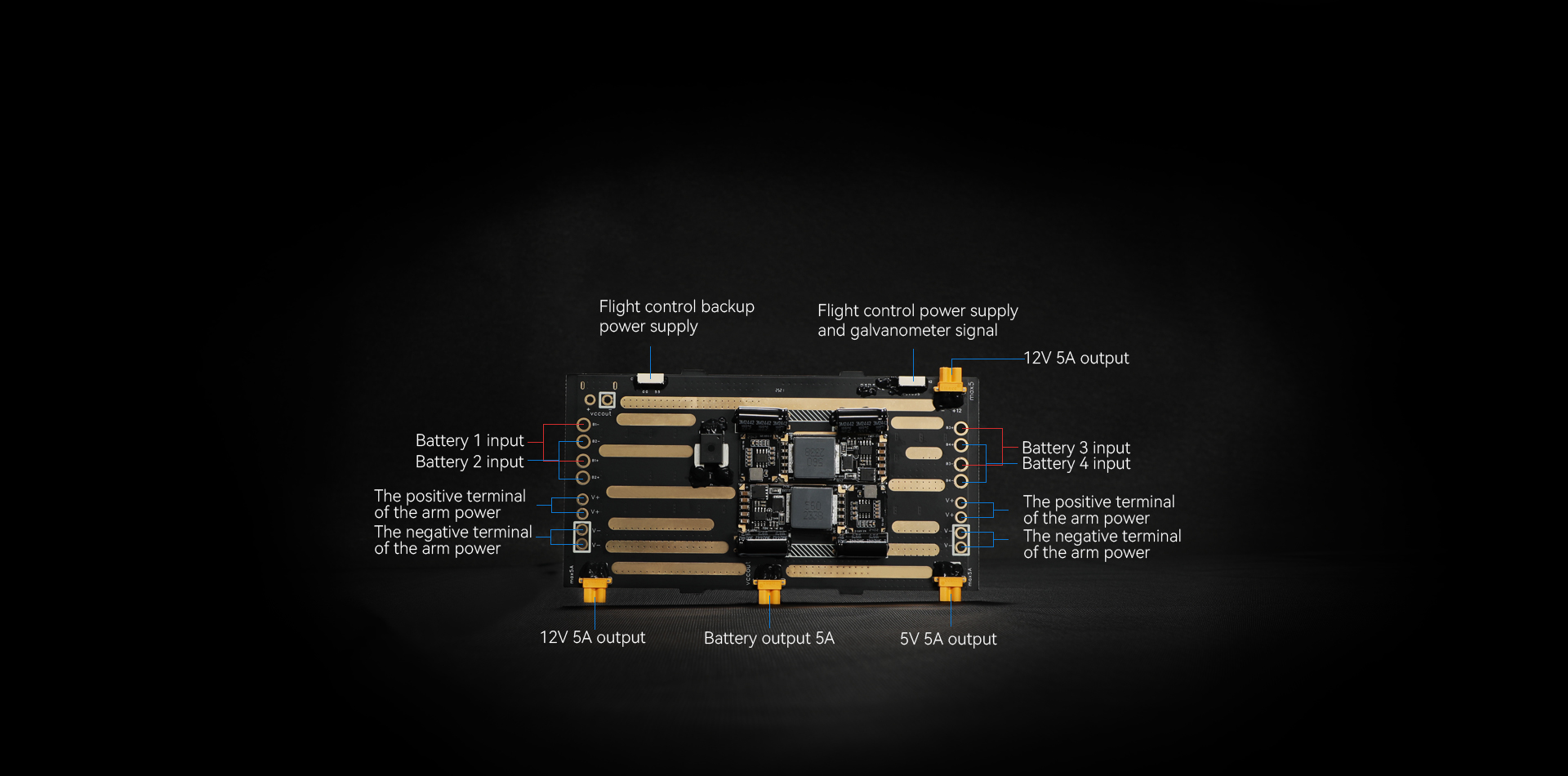

INTERFACE DIAGRAM
SPECIFICATIONS
Input Voltage: 24~48V (6~12S)
Model: M1200-PDB
Output Voltage: 5V/12V
Size: 1720*89*10mm
Matching Model: M1200 multi-rotor drone
Weight: ≈134g
Function Integration: Voltage reduction module, high-precision analog galvanometer, 5V flight control dual
power supply, power regulation power supply, and four battery inputs
