M690C POWER
DISTRIBUTION BOARD
Providing stable and convenient flight for quadcopter M690C

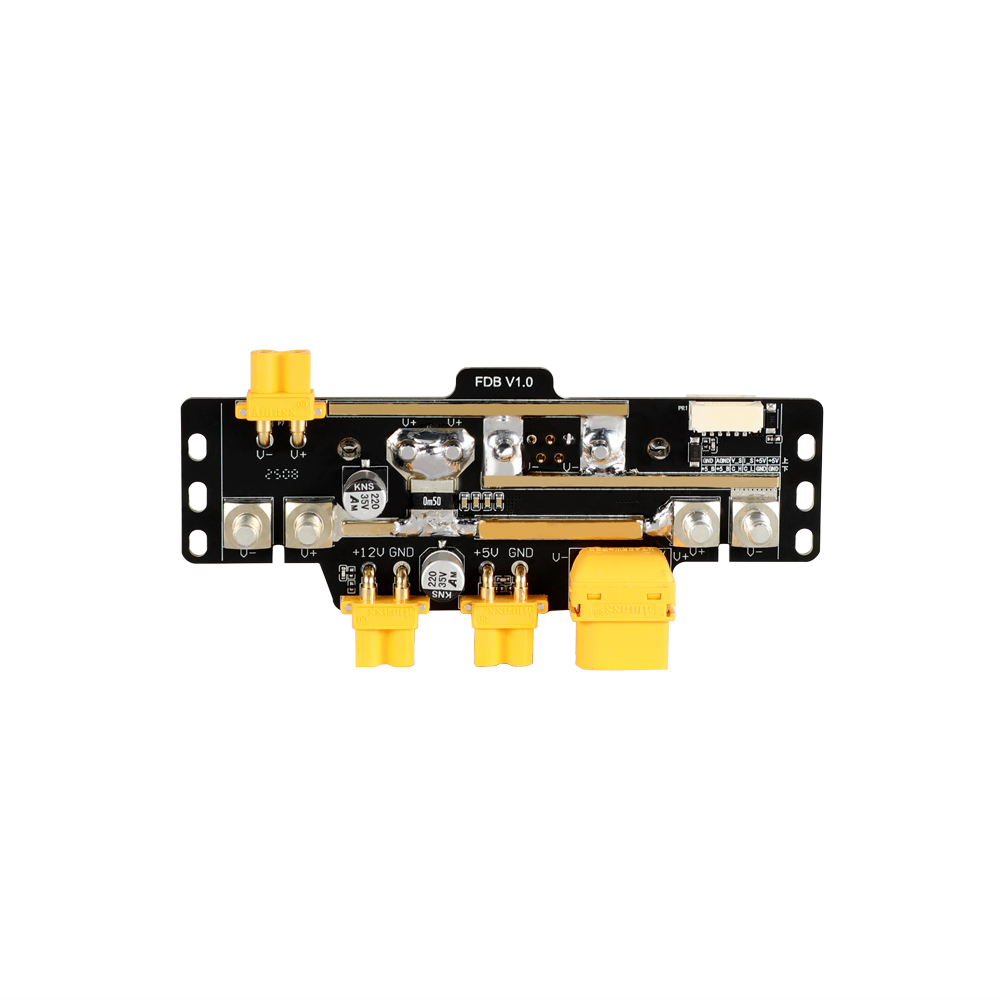

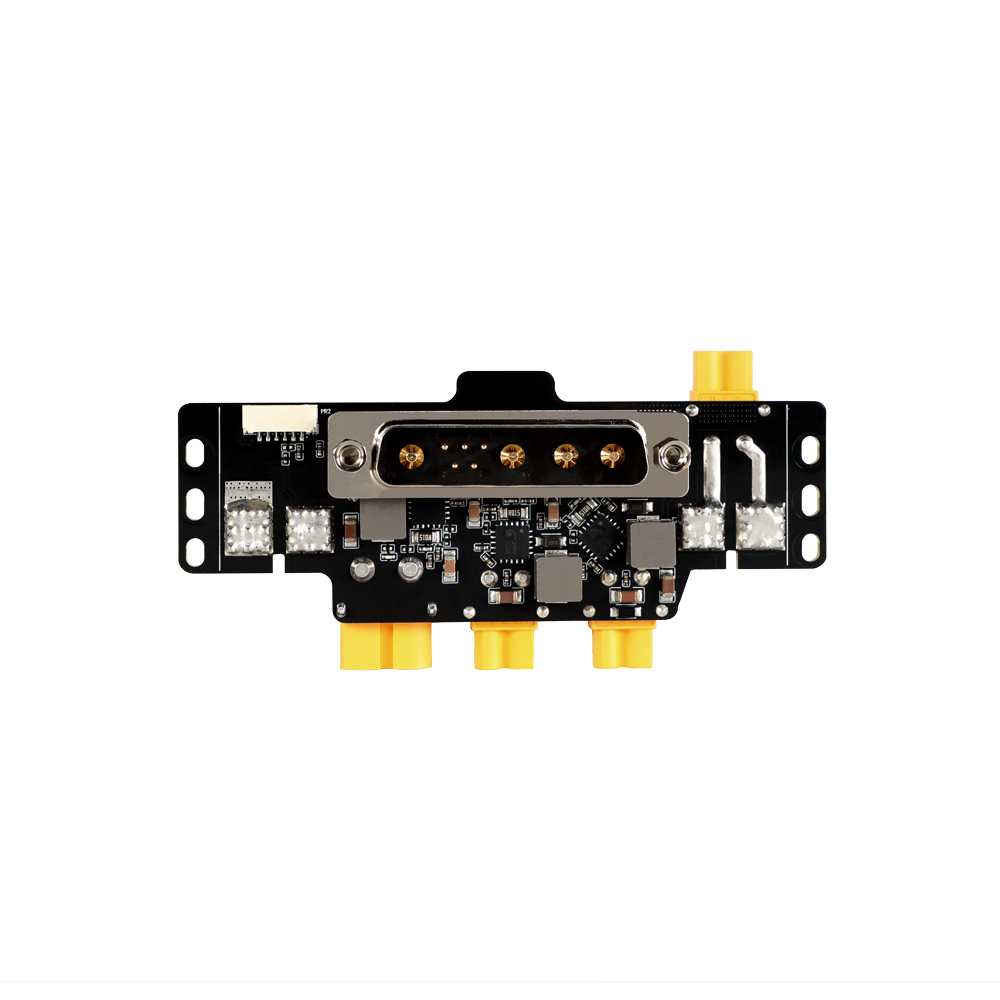

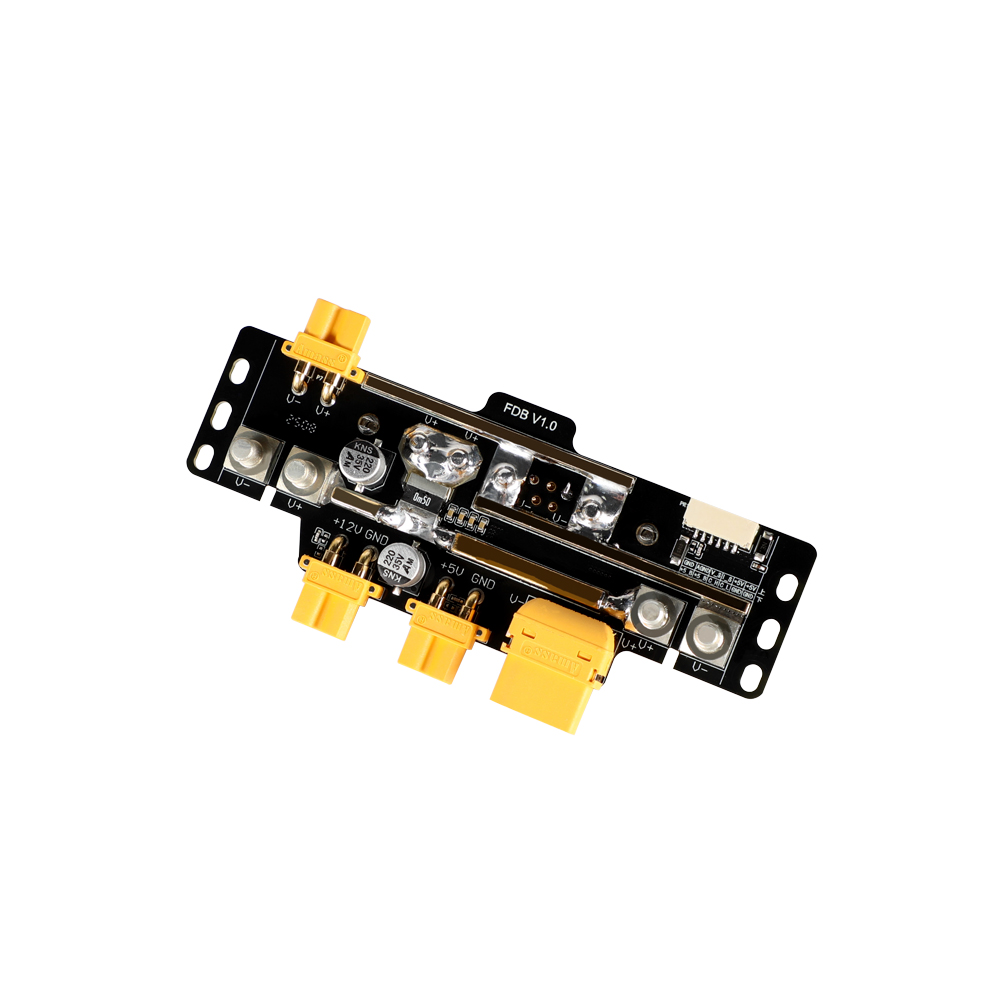

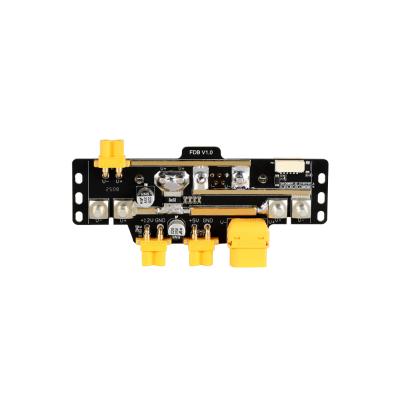

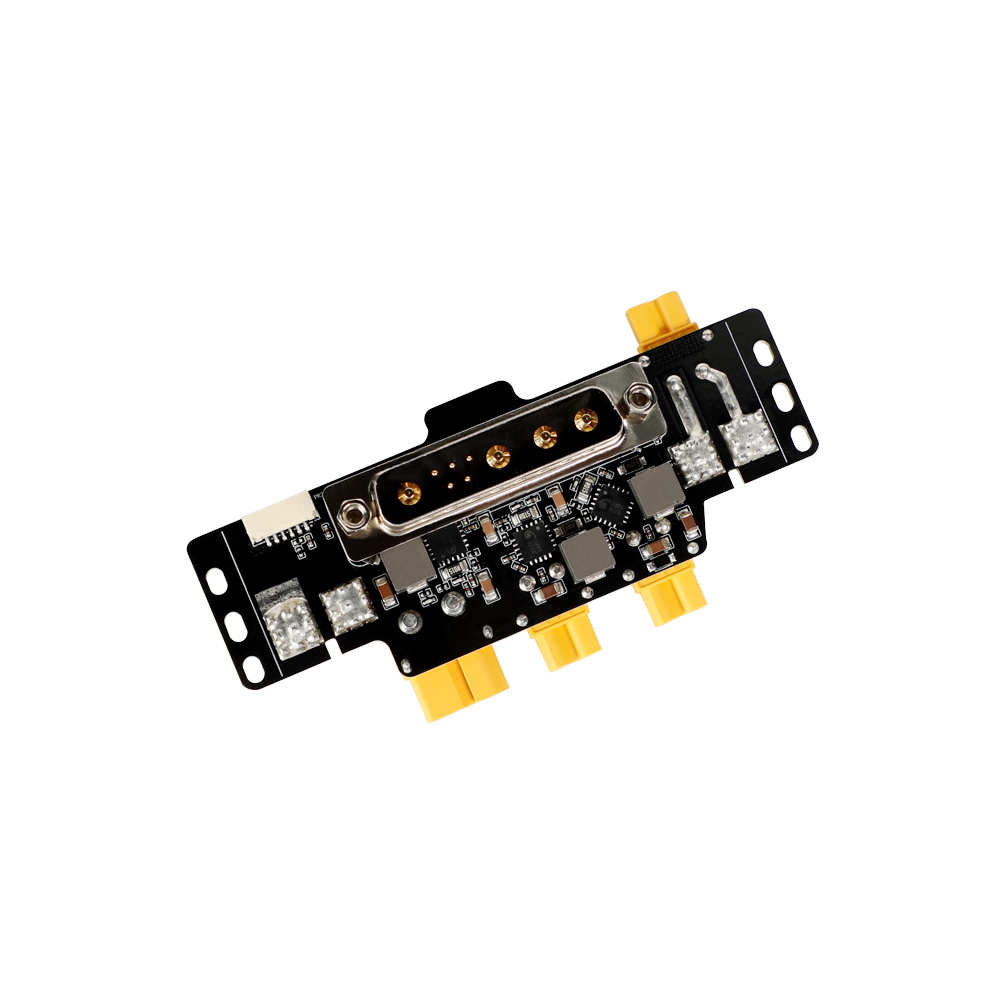

APPEARANCE DISPLAY
INTERFACE DIAGRAM
SPECIFICATIONS
Model: M690C-PDB
Output Voltage: 5V/12V
Size: 98*37.5*22mm
Output Current: Rated 40A; Instantaneous 70A
Weight: ≈52g
Matching Model: M690C multi-rotor drone
Input Voltage: 16~24V (4~6S)
Matching Battery: 6S 22Ah/6S 27Ah smart battery*1PC
Function Integration: ESC power supply, voltage reduction module, analog current and voltage meter,
intelligent battery CAN interface, 5V 3A flight control dual power supply
